Transmission Parts

Click on red part numbers for photos

Transmission	Part No.	Price £

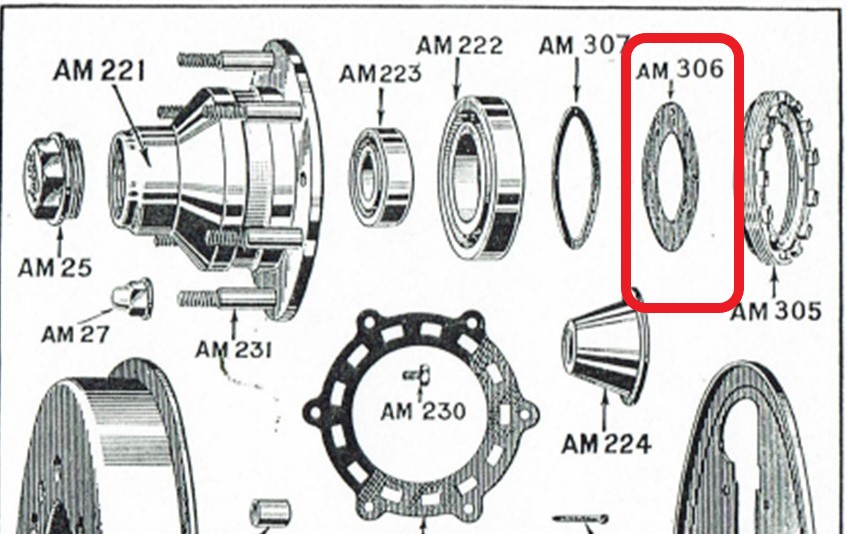

12/4 Hub leathers, front	AM226/AM306	12
12/4 Hub felt seals, rear	AO66	10

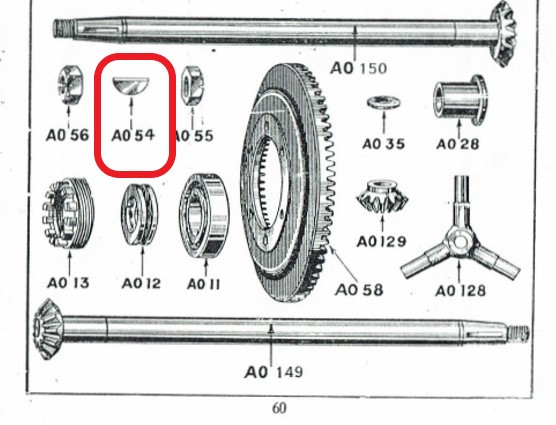

12/4 Half shaft keys	AO54	6.50
12/4 & 16/6 Rear hub ring nut	AO64, EV62	70

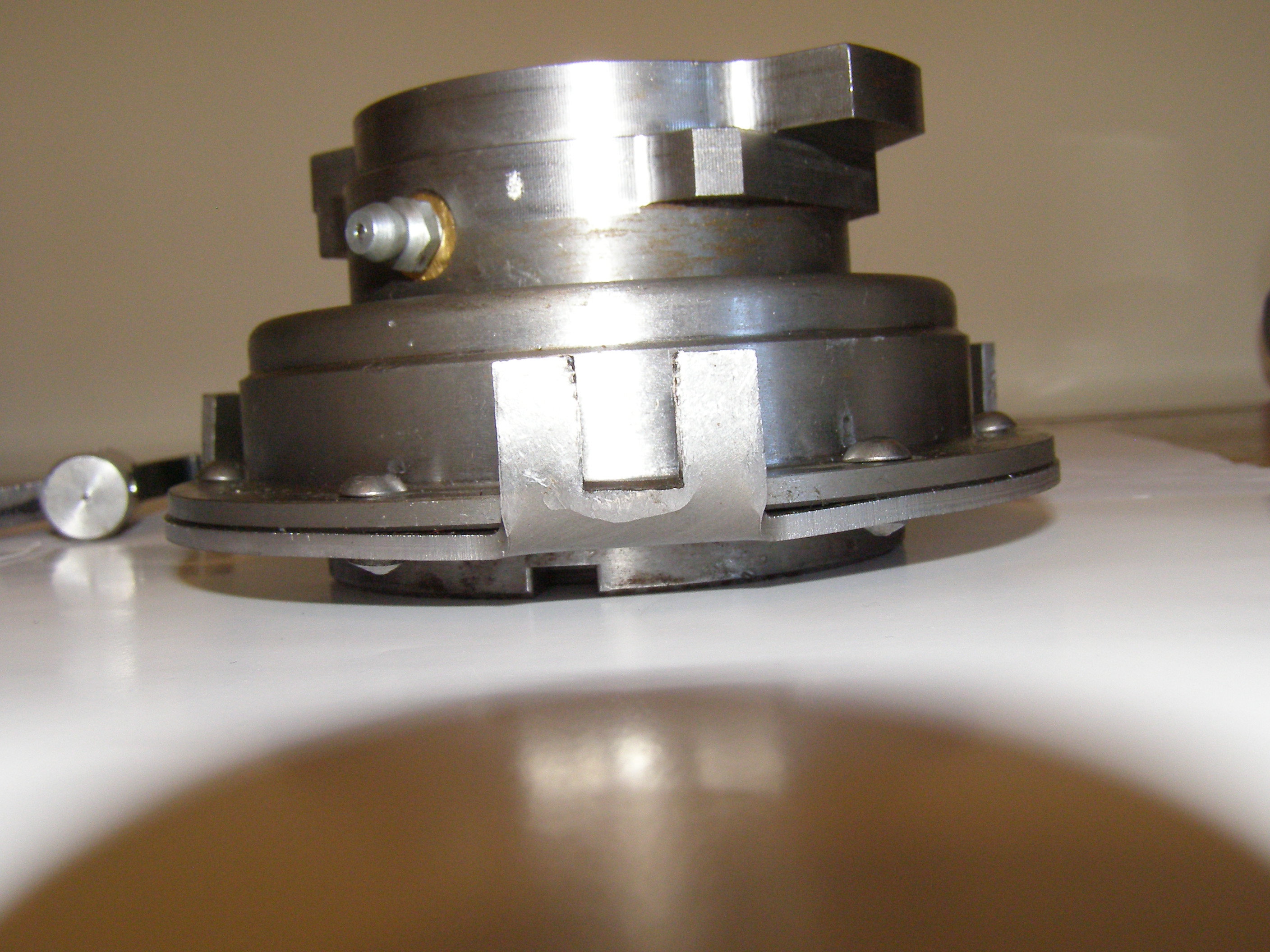

12/4 Clutch release bearing assembly, incl. carriers	AK16,21,23	340
12/4 10inx7.625in Clutch lining pairs	AK5	45
12/4 10.25inx7.625in Clutch lining pairs	AK5	47

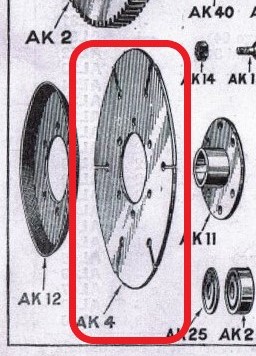

12/4 Clutch drive plates	AK4	52
12/4 Clutch plate centre splined hub	AK11	250

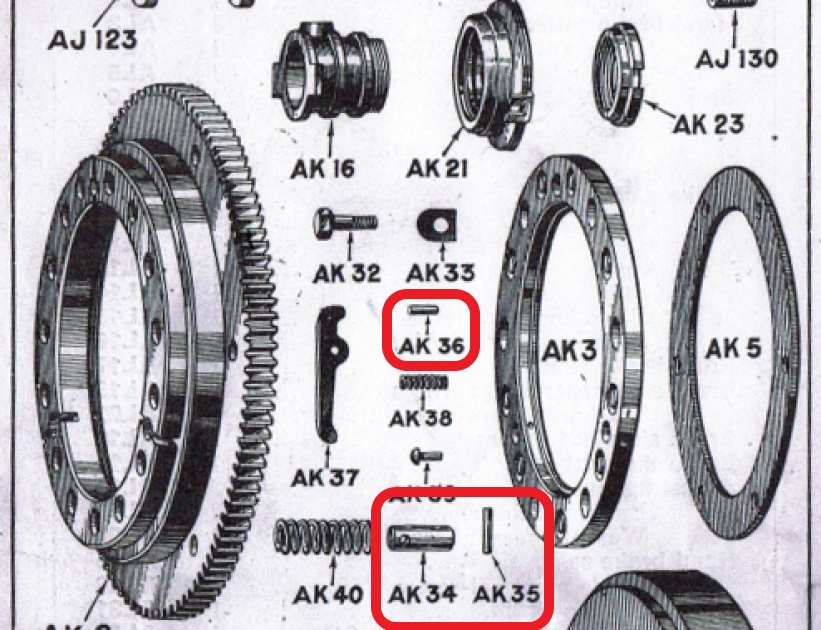

12/4 Clutch lever posting pin sets of 3	AK34,35,36	40

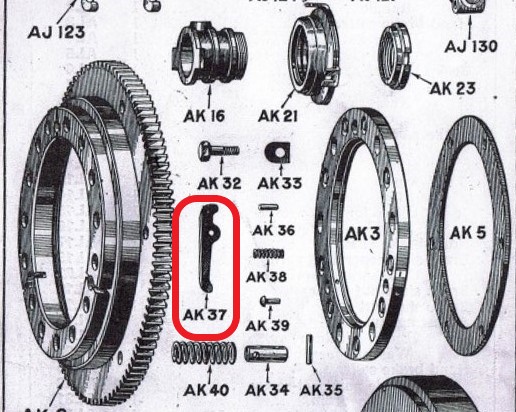

12/4 Clutch levers, set of 3	AK37	45

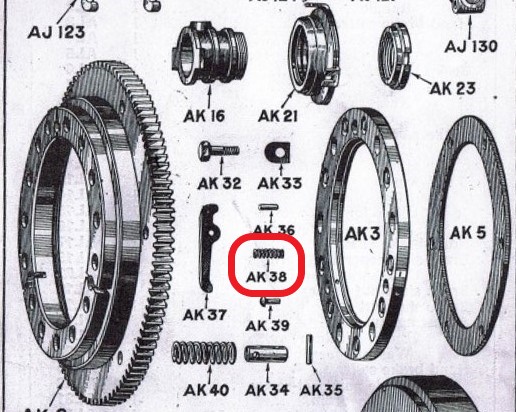

12/4 Clutch lever return spring	AK38	1.60

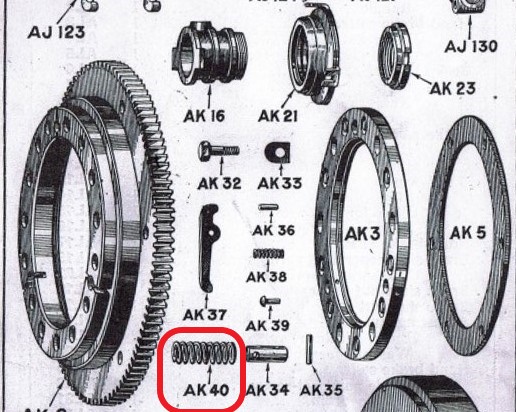

12/4 Clutch springs, set of 15	AK40	40
12/4 Gearbox plug washer	AT42	3.20
12/4 Gearbox 1st motion shaft bush – to order	AT52	POA

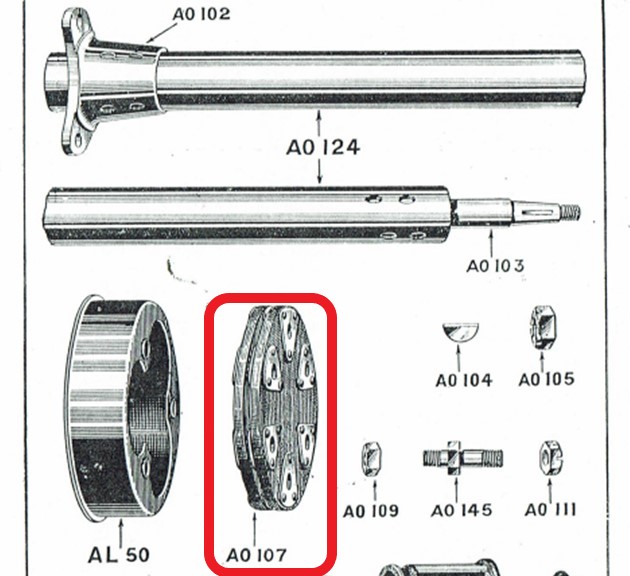

12/4 Prop shaft drive coupling, leather as original	AO107	130

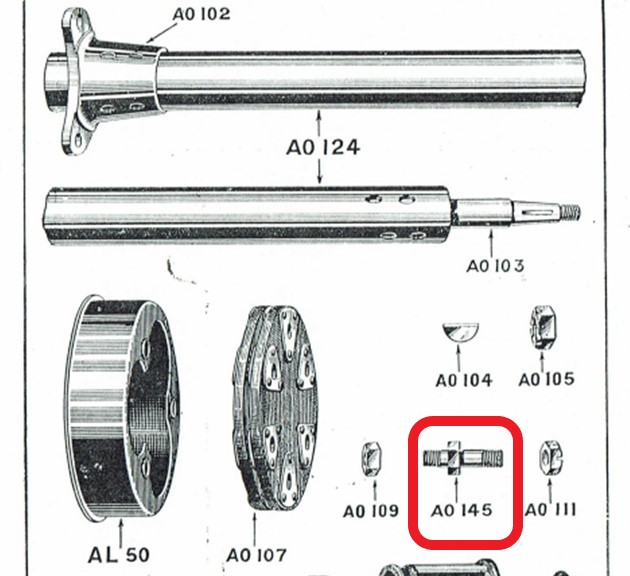

12/4 Prop shaft coupling bolts, per bolt	AO145	11
12/4 Prop shaft gaiter, rubber	AO122	13.50
12/4 Starter ring gear		POA
12/4 Gearbox gears – gate change & early ball change	AJ62,63,69,71	1600
12/4 Gearbox gears – late ball change	AJ62,69,71,165	1600
12/4 Flywheel nut – tapered	AK30	8

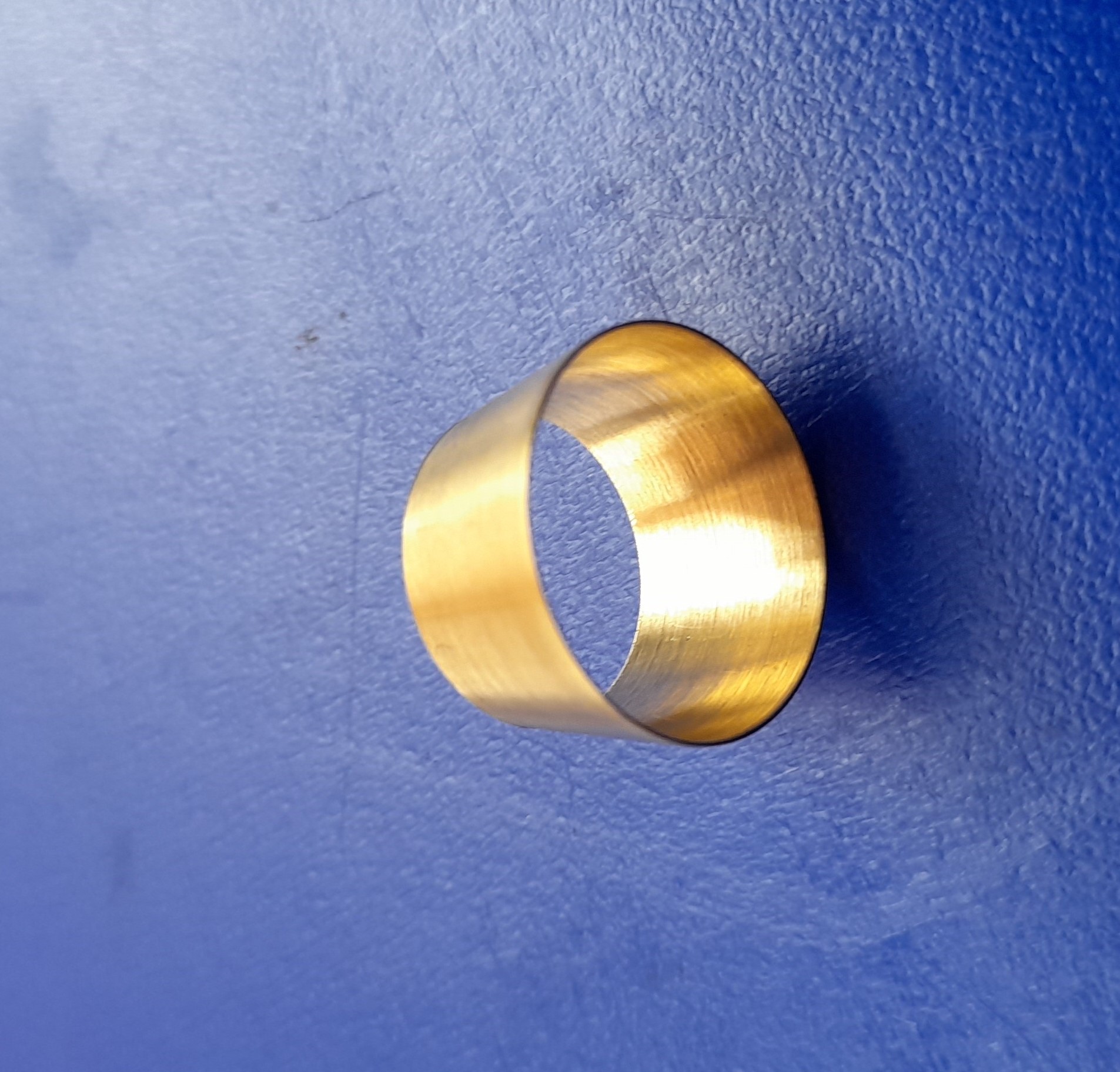

12/4 Cone bush for tapered flywheel nut	AK31	8

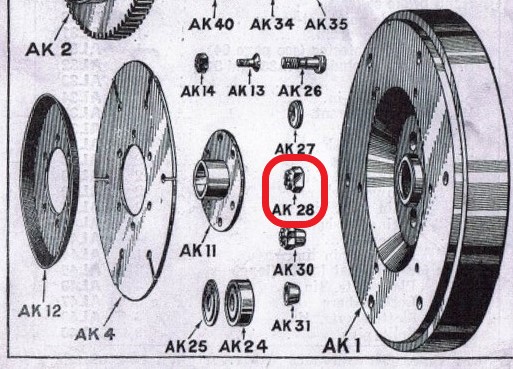

12/4 Flywheel nut – plain	AK28	4
12/4 & 16/6 Rear axle tube repair sleeve		39

Transmission	Part No.	Price £

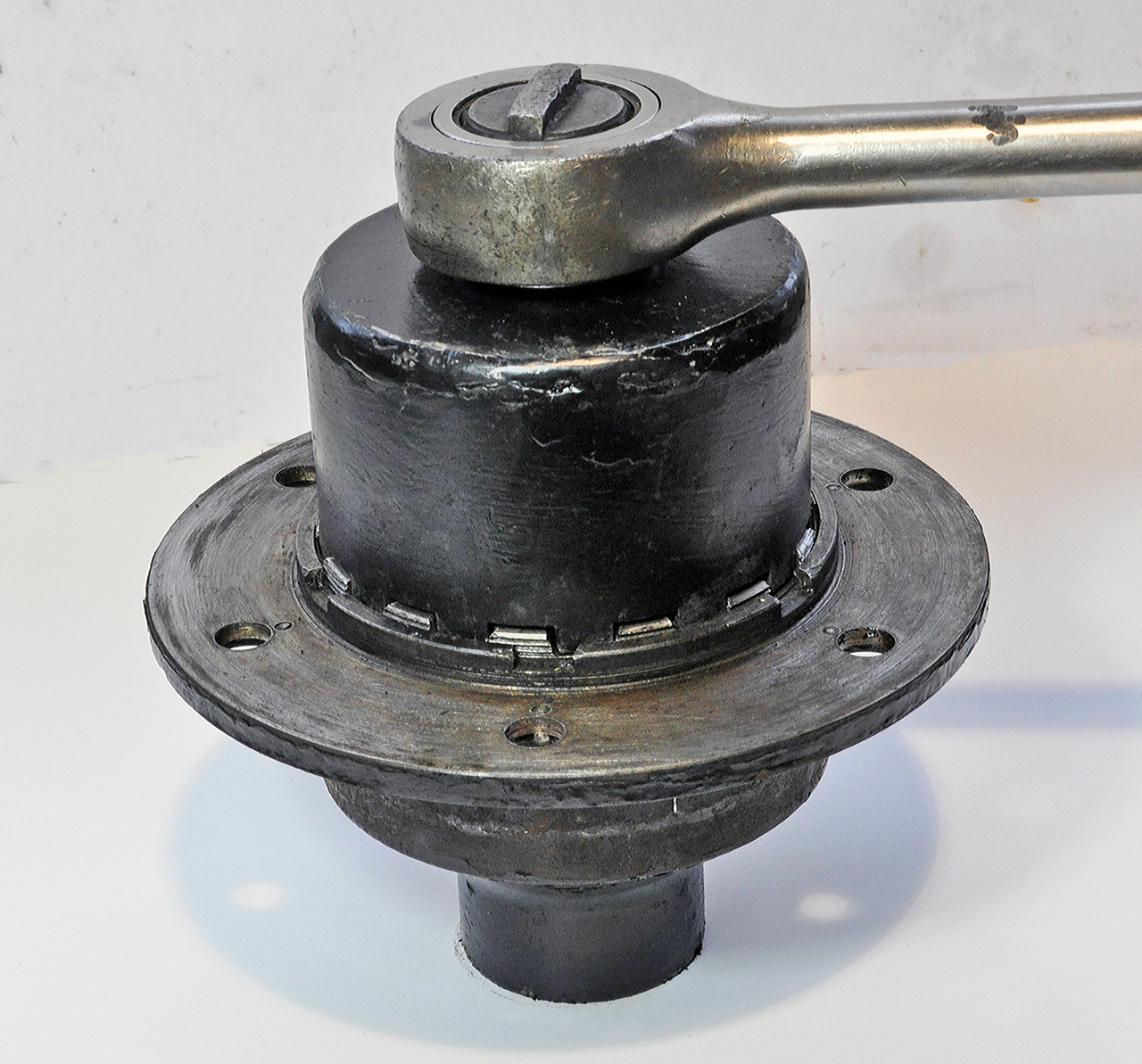

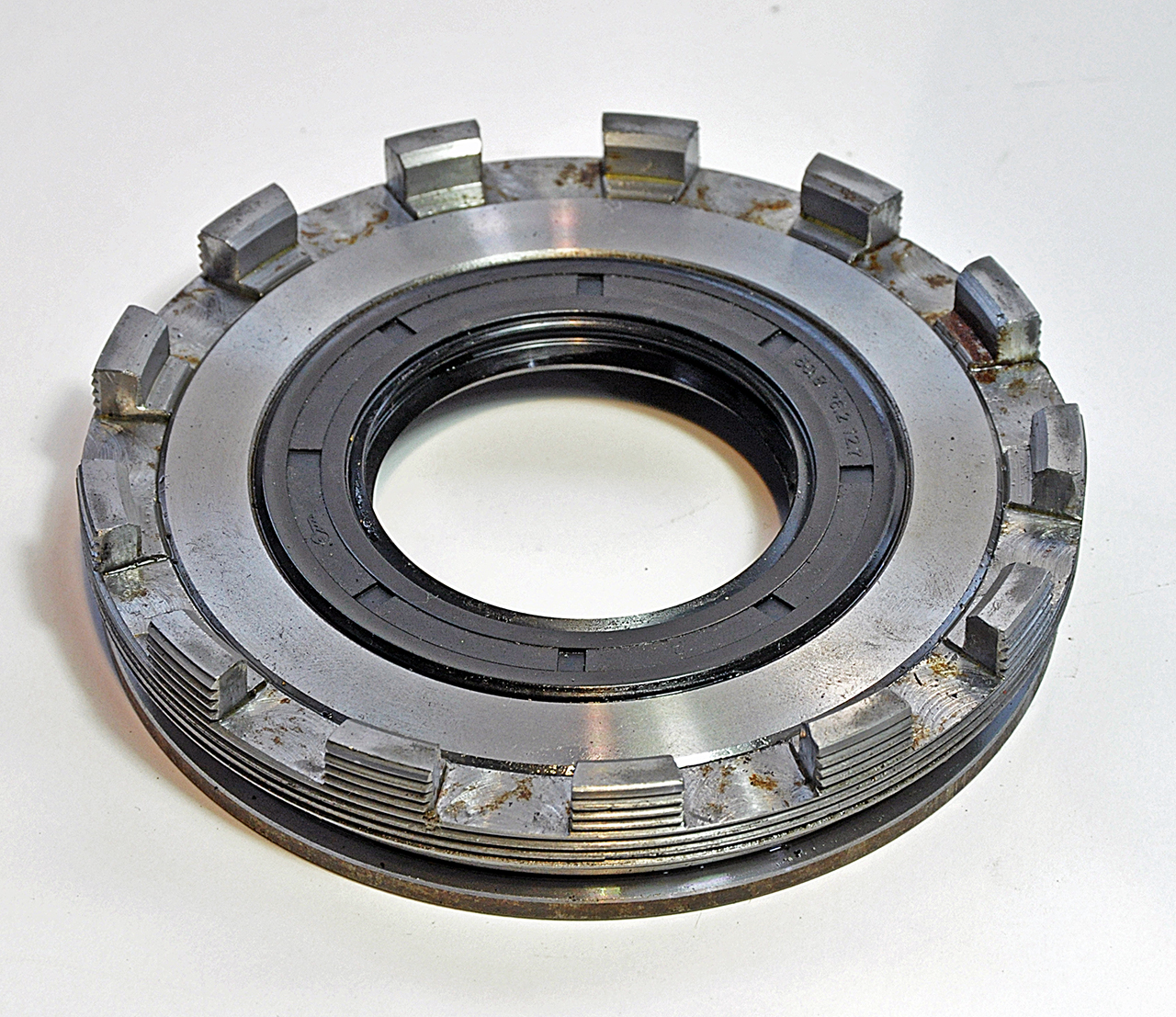

12/4 & 16/6 Rear hub oil seal conversion kit (adapter ring, ring nut,oil seal, O-rings)	Modification	145 per side

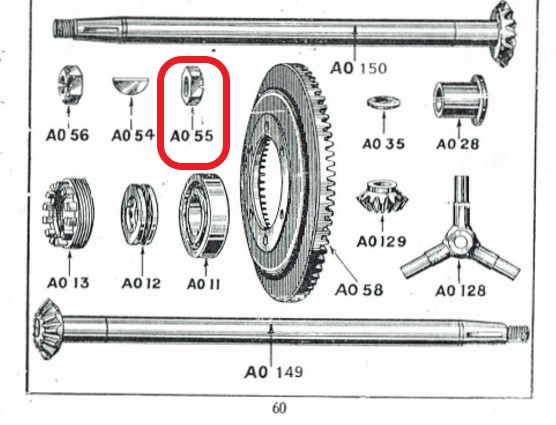

12/4 & 16/6 L.H. Thread half shaft nut (off-side)	AO55, EV49	11.75

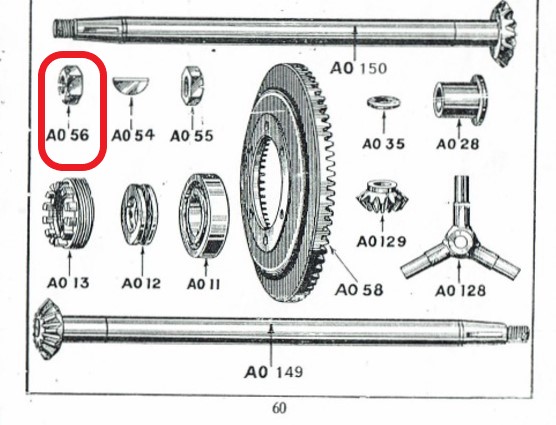

12/4 & 16/6 R.H. Thread half shaft nut (near-side)	AO56, EV50	9.75

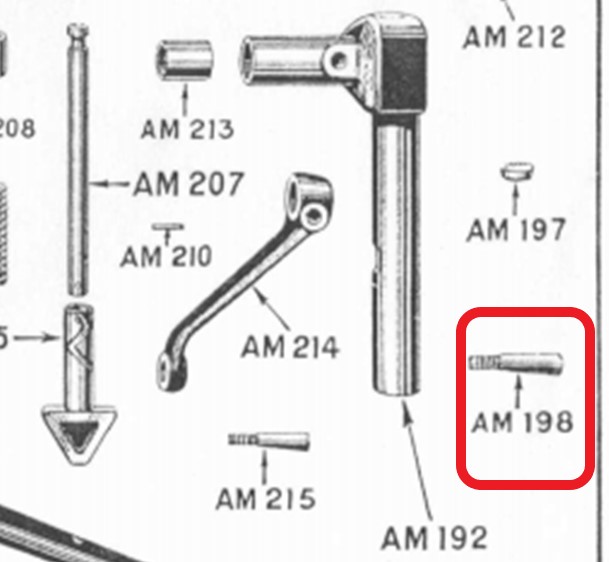

12/4 & 16/6 King pin cotter pin	AM198/ER15	20
12/4 & 16/6 Rear (artillery) wheel studs	AO70/ER52	15
16/6 Hub leathers, front	ER47/AM306	12
16/6 Clutch thrust bearing		100

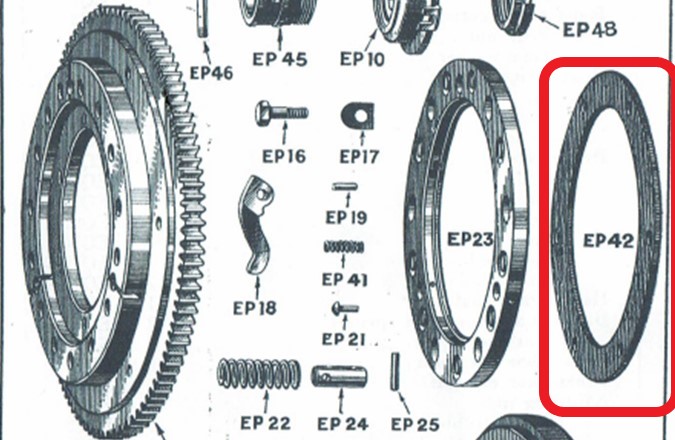

16/6 Clutch lining pairs	EP26/EP42	47

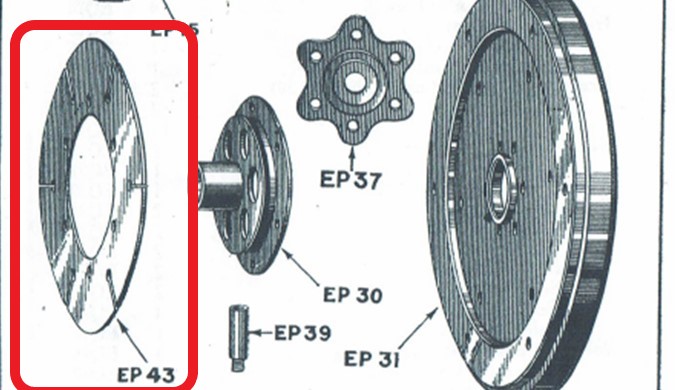

16/6 Clutch drive plates	EP28/EP43	52
16/6 Clutch post & pin set	EP24/25/19	40

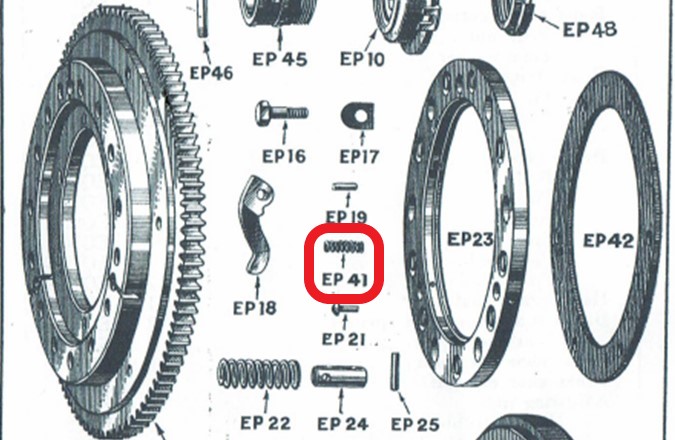

16/6 Clutch lever return spring	EP20/EP41	1.60

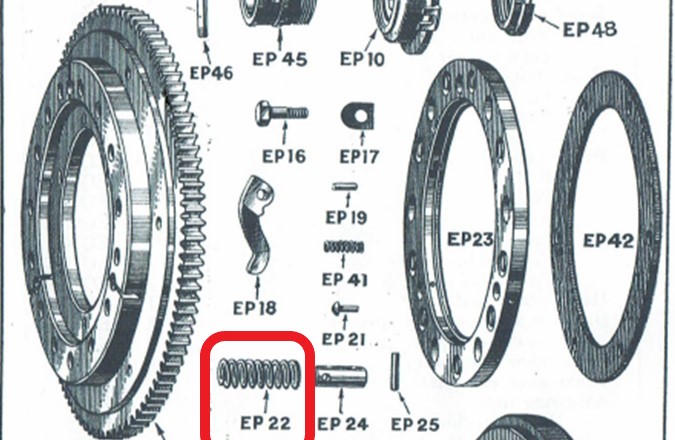

16/6 Clutch springs, set of 15	EP22	40

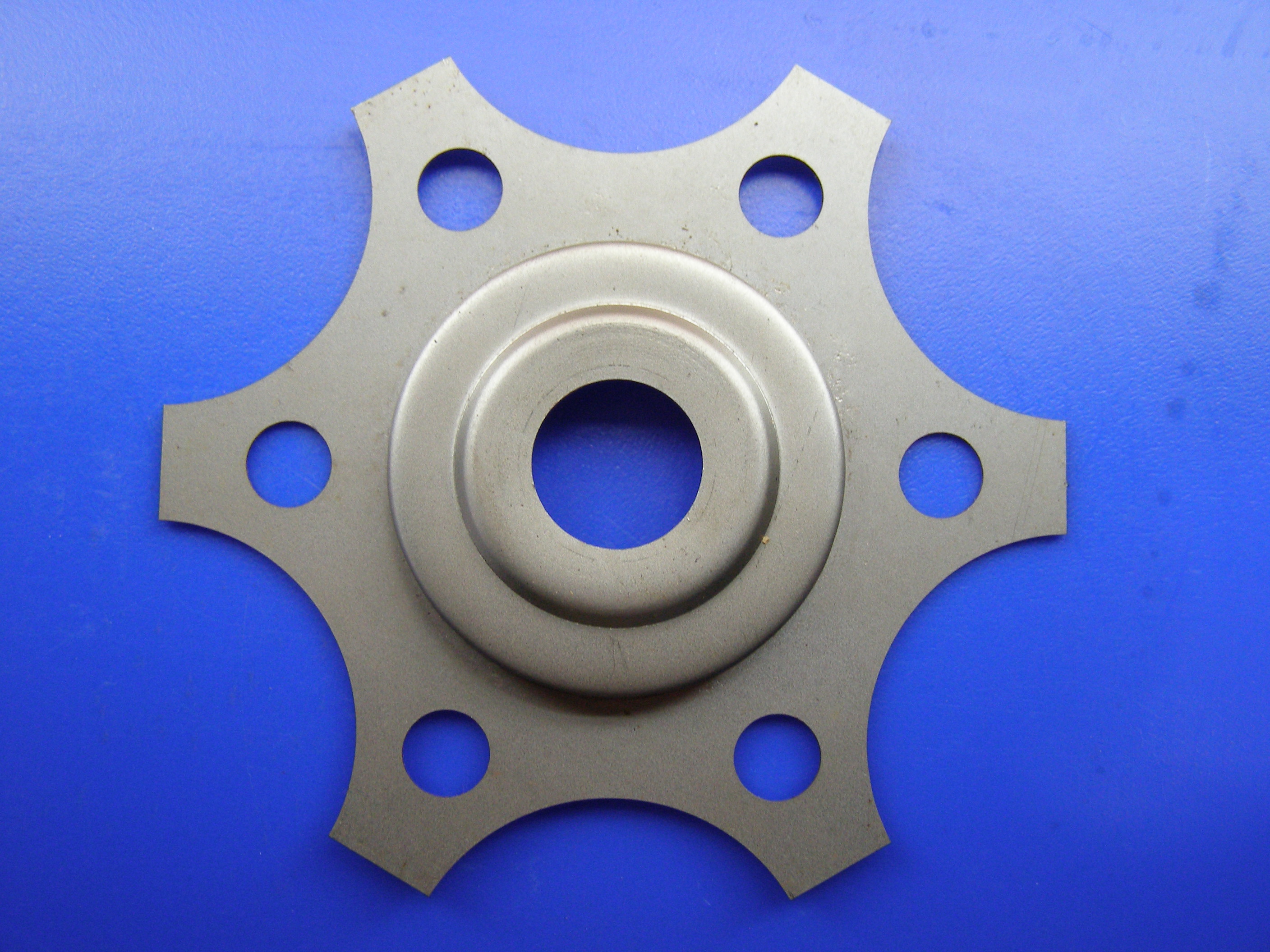

16/6 Flywheel lock washer/ bearing cover	EP37	15
16/6 Prop shaft gaiter, rubber	EW19/AO122	13.50

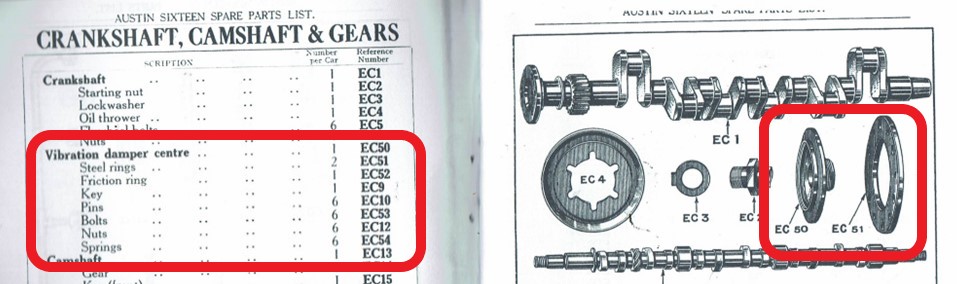

16/6 Vibration damper discs- pair – friction disc parts only	EC52	45
16/6 Starter ring gear		POA

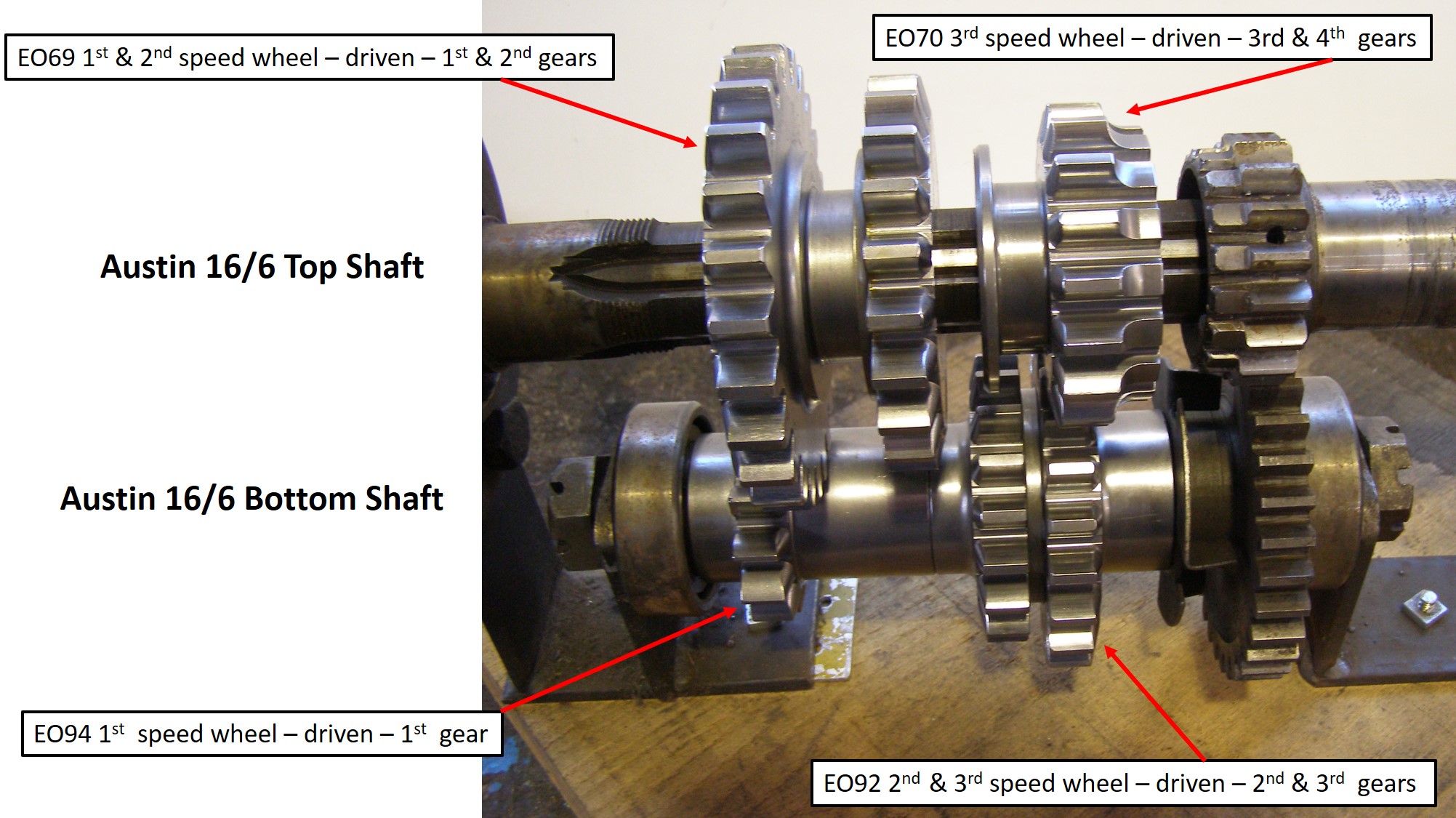

16/6 Gearbox gears	EO69,70,92,94	1600

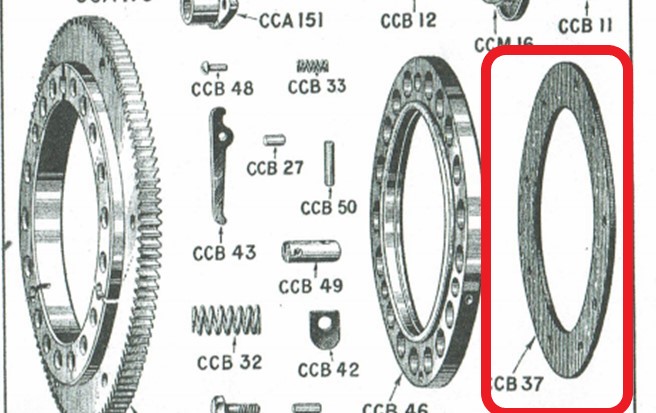

20/4 Clutch lining sets	CCB37	52.50

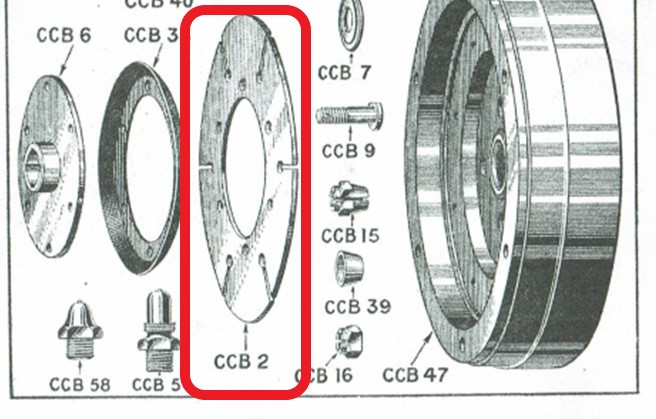

20/4 Clutch drive plates	CCB2	65

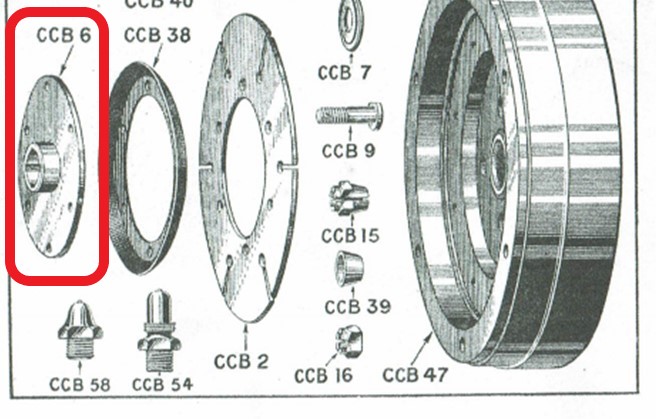

20/4 Clutch centre (splined)	CCB6	360

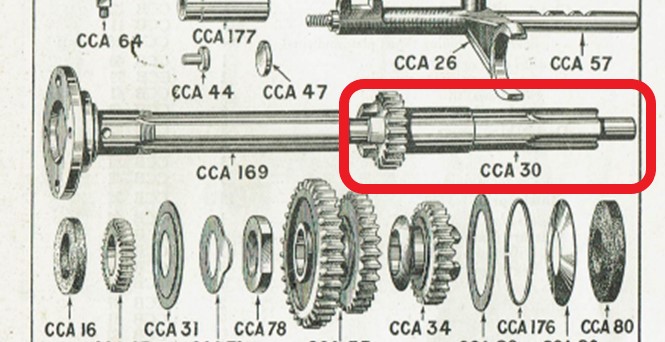

20/4 Gearbox 1st motion shaft	CCA30	895
20/4 & 20/6 rear brake lever return spring- handed	CCJ57,58, DV22,23

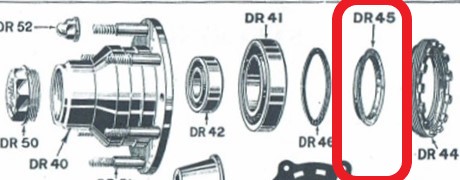

20/6 Hub leathers, front	DR45	12

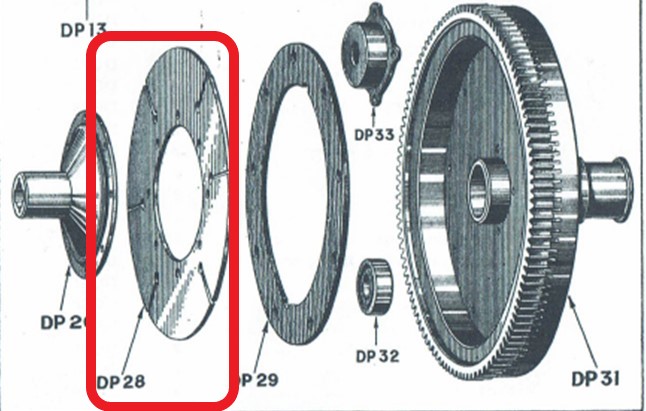

20/6 Clutch drive plates	DP28	65

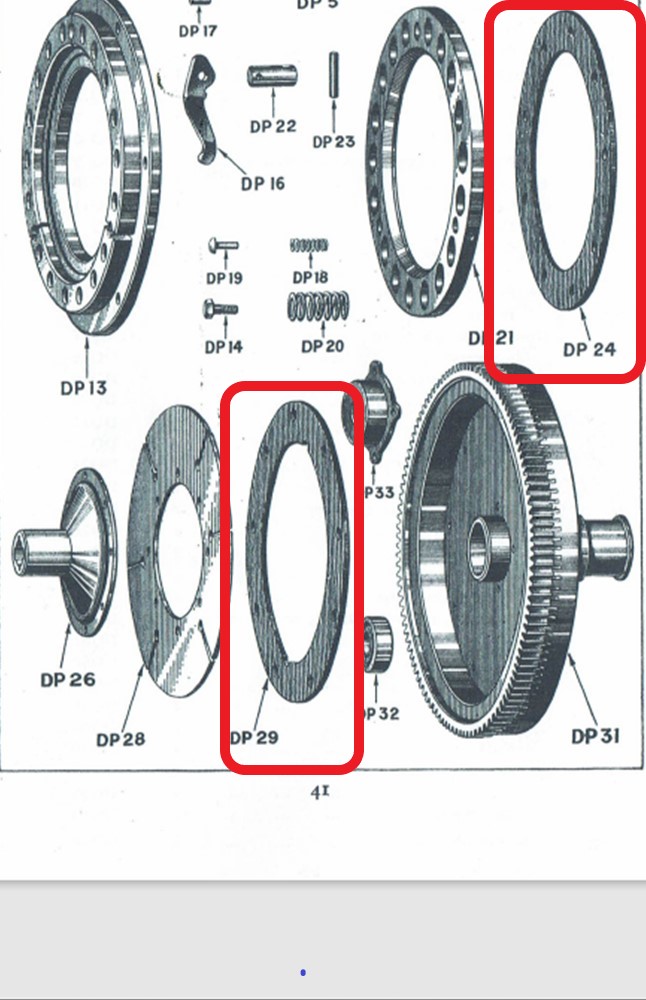

20/6 Clutch linings	DP24,29	55
20/6 Flywheel nut		1.20
Wheel Nuts, as original, one-piece brass	7/16” BSF 18TPI	12
